Полноконусные форсунки DF серии

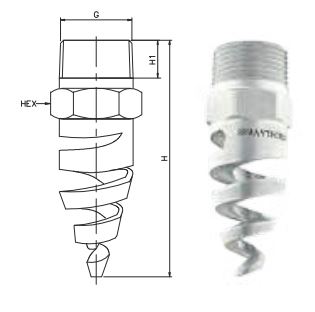

Угол распыления 60° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/4 3/8 1/2 3/4 1 1 1/2” 2” 3” 4”
Модель BSP BSP BSP BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 HEX
DF14.475 • 2.4 2.37 3.36 4.75 5.82 7.51 8.89 10.62 1/4” 48 10 14
DF14.650 • 2.8 3.25 4.60 6.50 7.96 10.28 12.16 14.53 Weight (Metals) = 27.0 gms. Approx
DF14.800 • 3.1 4.00 5.66 8.00 9.80 12.65 14.97 17.89 3/8 58 10 17
DF24.100 • • 3.5 5.00 7.07 10.00 12.25 15.81 18.71 22.36 Weight (Metals) = 53.7 gms. Approx
DF24.125 • • 3.9 6.25 8.84 12.50 15.31 19.76 23.39 27.95 1/2 76 13.2 22
DF24.160 • • 4.4 8.00 11.31 16.00 19.60 25.30 29.93 35.78 Weight (Metals) = 80.0 gms. Approx
DF24.180 • • 4.6 9.00 12.73 18.00 22.05 28.46 33.67 40.25 3/4 86 14.2 27
DF24.200 • • 4.9 10.00 14.14 20.00 24.49 31.62 37.42 44.72 Weight (Metals) = 170.0 gms. Approx
DF24.225 • 5.2 11.25 15.91 22.50 27.56 35.58 42.09 50.31 1 108 16.2 36
DF24.250 • 5.5 12.50 17.68 25.00 30.62 39.53 46.77 55.90 Weight (Metals) = 323.0 gms. Approx
DF24.320 • 6.2 16.00 22.63 32.00 39.19 50.60 59.87 71.55 1 1/2" 138 19.1 51
DF24.400 • 7.0 20.00 28.28 40.00 48.99 63.25 74.83 89.44 Weight (Metals) = 634.0 gms. Approx
DF24.520 • 7.9 26.00 36.77 52.00 63.69 82.22 97.28 116.28 2” 148 23.4 64
DF24.650 • 8.9 32.5 45.96 65.00 79.61 102.77 121.60 145.34 Weight (Metals) = XX gms. Approx
DF24.800 • 9.8 40.00 56.57 80.00 97.98 126.49 149.67 178.89 3” 216 29.8 89
DF34.100 • 11.0 50.00 70.71 100.0 122.47 158.11 187.08 223.61 Weight (Metals) = XX gms. Approx
DF34.118 • 12.0 59.00 83.44 118.0 144.52 186.57 220.76 263.86
DF34.130 • 12.6 65.00 91.92 130.0 159.22 205.55 243.21 290.69
DF34.160 • 13.9 80.00 113.14 160.0 195.96 252.98 299.33 357.77
DF34.200 • 15.6 100 141.42 200.0 244.95 316.23 374.17 447.21
DF34.227 • 16.6 113.5 160.51 227.0 278.02 358.92 424.68 507.59
DF34.250 • 17.4 125 176.78 250.0 306.19 395.19 467.71 559.02
DF34.300 • 19.0 150 212.13 300 367.42 474.34 561.25 670.82
DF34.337 • 20.2 168.5 238.29 337.0 412.74 532.84 630.47 753.55
DF34.400 • 22.0 200 282.84 400.0 489.90 632.46 748.33 894.43
DF34.500 • 24.6 250 353.55 500.0 612.37 790.57 935.41 1118.03
DF34.625 • 27.5 312.5 441.94 625.0 765.47 988.21 1169.27 1397.54
DF34.710 • 29.3 355 502.05 710.0 869.57 1122.61 1328.29 1587.61
DF34.800 • 31.1 400 565.69 800.0 979.80 1264.91 1496.66 1788.85
DF44.1000 • 34.8 500 707.11 1000 1224.74 1581.14 1870.83 2236.07
DF44.1250 • 38.9 625 883.88 1250 1530.93 1976.42 2338.54 2795.08
DF46.1600 • 44.0 800 1131 1600 1959.59 2529.82 2993.33 3577.71
DF44.2000 * 49 2 1000 1414 2000 2449 49 3162 28 3741 66 4472 14
DF44.2500 • 55.1 1250 1767 2500 3061.86 3952.85 4677.07 5590.17
DF46.3125 • 61.6 1562.5 2209 3125 3827.33 4941.06 5846.34 6987.71


Угол распыления 90° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/4 3/8 1/2 3/4 1 1 1/2” 2” 3” 4”
Модель BSP BSP BSP BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 HEX
DF16.475 • 2.4 2.37 3.36 4.75 5.82 7.51 8.89 10.62 1/4” 48 10 14
DF16.650 • 2.8 3.25 4.60 6.50 7.96 10.28 12.16 14.53 Weight (Metals) = 27.0 gms. Approx
DF16.800 • 3.1 4.00 5.66 8.00 9.80 12.65 14.97 17.89 3/8 58 10 17
DF26.100 • • 3.5 5.00 7.07 10.00 12.25 15.81 18.71 22.36 Weight (Metals) = 53.7 gms. Approx
DF26.125 • • 3.9 6.25 8.84 12.50 15.31 19.76 23.39 27.95 1/2 76 13.2 22
DF26.160 • • 4.4 8.00 11.31 16.00 19.60 25.30 29.93 35.78 Weight (Metals) = 80.0 gms. Approx
DF26.180 • • 4.6 9.00 12.73 18.00 22.05 28.46 33.67 40.25 3/4 86 14.2 27
DF26.200 • • 4.9 10.00 14.14 20.00 24.49 31.62 37.42 44.72 Weight (Metals) = 170.0 gms. Approx
DF26.225 • 5.2 11.25 15.91 22.50 27.56 35.58 42.09 50.31 1 108 16.2 36
DF26.250 • 5.5 12.50 17.68 25.00 30.62 39.53 46.77 55.90 Weight (Metals) = 323.0 gms. Approx
DF26.320 • 6.2 16.00 22.63 32.00 39.19 50.60 59.87 71.55 1 1/2" 138 19.1 51
DF26.400 • 7.0 20.00 28.28 40.00 48.99 63.25 74.83 89.44 Weight (Metals) = 634.0 gms. Approx
DF26.520 • 7.9 26.00 36.77 52.00 63.69 82.22 97.28 116.28 2” 148 23.4 64
DF26.650 • 8.9 32.5 45.96 65.00 79.61 102.77 121.60 145.34 Weight (Metals) = XX gms. Approx
DF26.800 • 9.8 40.00 56.57 80.00 97.98 126.49 149.67 178.89 3” 216 29.8 89
DF36.100 • 11.0 50.00 70.71 100.0 122.47 158.11 187.08 223.61 Weight (Metals) = XX gms. Approx
DF36.118 • 12.0 59.00 83.44 118.0 144.52 186.57 220.76 263.86
DF36.130 • 12.6 65.00 91.92 130.0 159.22 205.55 243.21 290.69
DF36.160 • 13.9 80.00 113.14 160.0 195.96 252.98 299.33 357.77
DF36.200 • 15.6 100 141.42 200.0 244.95 316.23 374.17 447.21
DF36.227 • 16.6 113.5 160.51 227.0 278.02 358.92 424.68 507.59
DF36.250 • 17.4 125 176.78 250.0 306.19 395.19 467.71 559.02
DF36.300 • 19.0 150 212.13 300 367.42 474.34 561.25 670.82
DF36.337 • 20.2 168.5 238.29 337.0 412.74 532.84 630.47 753.55
DF36.400 • 22.0 200 282.84 400.0 489.90 632.46 748.33 894.43
DF36.500 • 24.6 250 353.55 500.0 612.37 790.57 935.41 1118.03
DF36.625 • 27.5 312.5 441.94 625.0 765.47 988.21 1169.27 1397.54
DF36.710 • 29.3 355 502.05 710.0 869.57 1122.61 1328.29 1587.61
DF36.800 • 31.1 400 565.69 800.0 979.80 1264.91 1496.66 1788.85
DF46.1000 • 34.8 500 707.11 1000 1224.74 1581.14 1870.83 2236.07
DF46.1250 • 38.9 625 883.88 1250 1530.93 1976.42 2338.54 2795.08
DF46.1600 • 44.0 800 1131 1600 1959.59 2529.82 2993.33 3577.71
DF46.2000 • 49 2 1000 1414 2000 2449 49 3162 28 3741 66 4472 14
DF46.2500 • 55.1 1250 1767 2500 3061.86 3952.85 4677.07 5590.17
DF46.3125 • 61.6 1562.5 2209 3125 3827.33 4941.06 5846.34 6987.71


Угол распыления 120° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/4 3/8 1/2 3/4 1 1 1/2” 2” 3” 4”
Модель BSP BSP BSP BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 HEX
DF18.475 • 2.4 2.37 3.36 4.75 5.82 7.51 8.89 10.62 1/4” 48 10 14
DF18.650 • 2.8 3.25 4.60 6.50 7.96 10.28 12.16 14.53 Weight (Metals) = XX gms. Approx
DF18.800 • 3.1 4.00 5.66 8.00 9.80 12.65 14.97 17.89 3/8 58 10 17
DF28.100 • • 3.5 5.00 7.07 10.00 12.25 15.81 18.71 22.36 Weight (Metals) = XX gms. Approx
DF28.125 • • 3.9 6.25 8.84 12.50 15.31 19.76 23.39 27.95 1/2 76 13.2 22
DF28.160 • • 4.4 8.00 11.31 16.00 19.60 25.30 29.93 35.78 Weight (Metals) = XX gms. Approx
DF28.180 • • 4.6 9.00 12.73 18.00 22.05 28.46 33.67 40.25 3/4 86 14.5 27
DF28.200 • • 4.9 10.00 14.14 20.00 24.49 31.62 37.42 44.72 Weight (Metals) = XX gms. Approx
DF28.225 • 5.2 11.25 15.91 22.50 27.56 35.58 42.09 50.31 1 108 16.8 36
DF28.250 • 5.5 12.50 17.68 25.00 30.62 39.53 46.77 55.90 Weight (Metals) = XX gms. Approx
DF28.320 • 6.2 16.00 22.63 32.00 39.19 50.60 59.87 71.55 1 1/2" 138 19.1 51
DF28.400 • 7.0 20.00 28.28 40.00 48.99 63.25 74.83 89.44 Weight (Metals) = XX gms. Approx
DF28.520 • 7.9 26.00 36.77 52.00 63.69 82.22 97.28 116.28 2” 148 23.4 64
DF28.650 • 8.9 32.5 45.96 65.00 79.61 102.77 121.60 145.34 Weight (Metals) = XX gms. Approx
DF28.800 • 9.8 40.00 56.57 80.00 97.98 126.49 149.67 178.89 3” 216 29.8 89
DF38.100 • 11.0 50.00 70.71 100.0 122.47 158.11 187.08 223.61 Weight (Metals) = XX gms. Approx
DF38.118 • 12.0 59.00 83.44 118.0 144.52 186.57 220.76 263.86 4” 232 35.8 114
DF38.130 • 12.6 65.00 91.92 130.0 159.22 205.55 243.21 290.69 Weight (Metals) = XX gms. Approx
DF38.160 • 13.9 80.00 113.14 160.0 195.96 252.98 299.33 357.77
DF38.200 • 15.6 100 141.42 200.0 244.95 316.23 374.17 447.21
DF38.227 • 16.6 113.5 160.51 227.0 278.02 358.92 424.68 507.59
DF38.250 • 17.4 125 176.78 250.0 306.19 395.19 467.71 559.02
DF38.300 • 19.0 150 212.13 300 367.42 474.34 561.25 670.82
DF38.337 • 20.2 168.5 238.29 337.0 412.74 532.84 630.47 753.55
DF38.400 • 22.0 200 282.84 400.0 489.90 632.46 748.33 894.43
DF38.500 • 24.6 250 353.55 500.0 612.37 790.57 935.41 1118.03
DF38.625 • 27.5 312.5 441.94 625.0 765.47 988.21 1169.27 1397.54
DF38.710 • 29.3 355 502.05 710.0 869.57 1122.61 1328.29 1587.61
DF38.800 • 31.1 400 565.69 800.0 979.80 1264.91 1496.66 1788.85
DF48.1000 • 34.8 500 707.11 1000 1224.74 1581.14 1870.83 2236.07
DF48.1250 • 38.9 625 883.88 1250 1530.93 1976.42 2338.54 2795.08
DF48.1600 • 44.0 800 1131 1600 1959.59 2529.82 2993.33 3577.71
DF48.2000 • 49 2 1000 1414 2000 2449 49 3162 28 3741 66 4472 14
DF48.2500 • 55.1 1250 1767 2500 3061.86 3952.85 4677.07 5590.17
DF48.3125 • 61.6 1562.5 2209 3125 3827.33 4941.06 5846.34 6987.71


Угол распыления 180° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/4 3/8 1/2 3/4 1 1 1/2” 2”
Модель BSP BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 HEX
DF19.475 • 2.4 2.37 3.36 4.75 5.82 7.51 8.89 10.62 1/4” 48 10 14
DF19.650 • 2.8 3.25 4.60 6.50 7.96 10.28 12.16 14.53 Weight (Metals) = XX gms. Approx
DF19.800 • 3.1 4.00 5.66 8.00 9.80 12.65 14.97 17.89 3/8 58 10 17
DF29.100 • • 3.5 5.00 7.07 10.00 12.25 15.81 18.71 22.36 Weight (Metals) = XX gms. Approx
DF29.125 • • 3.9 6.25 8.84 12.50 15.31 19.76 23.39 27.95 1/2 76 13.2 22
DF29.160 • • 4.4 8.00 11.31 16.00 19.60 25.30 29.93 35.78 Weight (Metals) = XX gms. Approx
DF29.180 • • 4.6 9.00 12.73 18.00 22.05 28.46 33.67 40.25 3/4 86 14.5 27
DF29.200 • • 4.9 10.00 14.14 20.00 24.49 31.62 37.42 44.72 Weight (Metals) = XX gms. Approx
DF29.225 • 5.2 11.25 15.91 22.50 27.56 35.58 42.09 50.31 1 108 16.8 36
DF29.250 • 5.5 12.50 17.68 25.00 30.62 39.53 46.77 55.90 Weight (Metals) = XX gms. Approx
DF29.320 • 6.2 16.00 22.63 32.00 39.19 50.60 59.87 71.55 1 1/2" 138 19.1 51
DF29.400 • 7.0 20.00 28.28 40.00 48.99 63.25 74.83 89.44 Weight (Metals) = XX gms. Approx
DF29.520 • 7.9 26.00 36.77 52.00 63.69 82.22 97.28 116.28 2” 148 23.4 64
DF29.650 • 8.9 32.5 45.96 65.00 79.61 102.77 121.60 145.34 Weight (Metals) = XX gms. Approx
DF29.800 • 9.8 40.00 56.57 80.00 97.98 126.49 149.67 178.89
DF39.100 • 11.0 50.00 70.71 100.0 122.47 158.11 187.08 223.61
DF39.118 • 12.0 59.00 83.44 118.0 144.52 186.57 220.76 263.86
DF39.130 • 12.6 65.00 91.92 130.0 159.22 205.55 243.21 290.69
DF39.160 • 13.9 80.00 113.14 160.0 195.96 252.98 299.33 357.77
DF39.200 • 15.6 100 141.42 200.0 244.95 316.23 374.17 447.21
DF39.227 • 16.6 113.5 160.51 227.0 278.02 358.92 424.68 507.59
DF39.250 • 17.4 125 176.78 250.0 306.19 395.19 467.71 559.02
DF39.300 • 19.0 150 212.13 300 367.42 474.34 561.25 670.82
DF39.337 • 20.2 168.5 238.29 337.0 412.74 532.84 630.47 753.55
DF39.400 • 22.0 200 282.84 400.0 489.90 632.46 748.33 894.43
DF39.500 • 24.6 250 353.55 500.0 612.37 790.57 935.41 1118.03
DF39.625 • 27.5 312.5 441.94 625.0 765.47 988.21 1169.27 1397.54
DF39.710 • 29.3 355 502.05 710.0 869.57 1122.61 1328.29 1587.61
DF39.800 • 31.1 400 565.69 800.0 979.80 1264.91 1496.66 1788.85
DF49.1000 • 34.8 500 707.11 1000 1224.74 1581.14 1870.83 2236.07
DF49.1250 • 38.9 625 883.88 1250 1530.93 1976.42 2338.54 2795.08
