Полноконусные форсунки DB серии

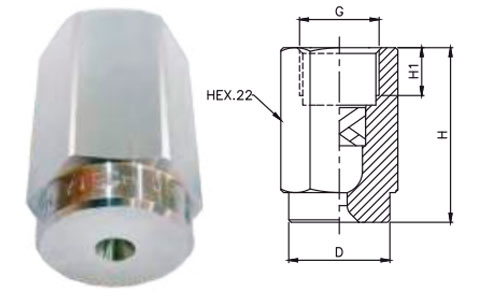

Design for 1/8″, 1/4″, 3/8″ & 1/2″

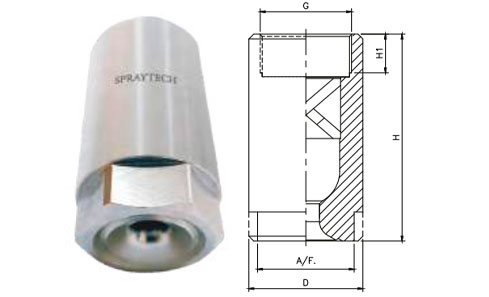

Design for 3/4″ & 2″

Модель Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
Угол распыления 1/8 1/4 3/8 1/2 3/4 1  1 1/4 1 1/2 2
 15° 30° BSP BSP BSP BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 D HEX
DB11.100 DB12.100 • 1.2 0.50 0.71 1.00 1.22 1.58 1.87 2.24 1/8” 26.5 6.5 13.2 14
DB11.150 DB12.150 • 1.5 0.75 1.06 1.50 1.84 2.37 2.81 3.35 Weight (Metals) = XX gms. Approx
DB11.175 DB12.175 • 1.6 0.87 1.24 1.75 2.14 2.77 3.27 3.91 1/4” 34 10 15.2 16
DB11.200 DB12.200 • 1.7 1.00 1.41 2.00 2.45 3.16 3.74 4.47 Weight (Metals) = 38 gms. Approx
DB11.250 DB12.250 • 1.9 1.25 1.77 2.50 3.06 3.95 4.68 5.59 3/8 36.5 10 21.2 22
DB11.300 DB12.300 • 2.0 1.50 2.12 3.00 3.67 4.74 5.61 6.71 Weight (Metals) = 90 gms. Approx
DB11.350 DB12.350 • 2.3 1.75 2.47 3.50 4.29 5.53 6.55 7.83 1/2 48.5 14 26.2 27
DB11.400 DB12.400 • 2.5 2.00 2.83 4.00 4.90 6.32 7.48 8.94 Weight (Metals) = 176 gms. Approx
DB11.475 DB12.475 • • 2.7 2.37 3.36 4.75 5.82 7.51 8.89 10.62 3/4 58 14 31.5 27
DB11.650 DB12.650 • 3.1 3.25 4.60 6.50 7.96 10.28 12.16 14.53 Weight (Metals) = 230 gms. Approx
DB11.800 DB12.800 • 3.5 4.00 5.66 8.00 9.80 12.65 14.97 17.89 1 76 18 39.5 36
DB21.100 DB22.100 • • 3.9 5.00 7.07 10.00 12.25 15.81 18.71 22.36 Weight (Metals) = 470 gms. Approx
DB21.125 DB22.125 • 4.3 6.25 8.84 12.50 15.31 19.76 23.39 27.95  1 1/4 96 20 49 41
DB21.160 DB22.160 • • 4.9 8.00 11.31 16.00 19.60 25.30 29.93 35.78 Weight (Metals) = 678 gms. Approx
DB21.180 DB22.180 • 5.2 9.00 12.73 18.00 22.05 28.46 33.67 40.25 1 1/2 107 20 59 50
DB21.200 DB22.200 • 5.5 10.00 14.14 20.00 24.49 31.62 37.42 44.72 Weight (Metals) = 1176 gms. Approx
DB21.225 DB22.225 • 5.8 11.25 15.91 22.50 27.56 35.58 42.09 50.31 2 130 22 68 60
DB21.250 DB22.250 • • 6.1 12.50 17.68 25.00 30.62 39.53 46.77 55.90 Weight (Metals) = 2410 gms. Approx
DB21.320 DB22.320 • 6.9 16.00 22.63 32.00 39.19 50.60 59.87 71.55
DB21.400 DB22.400 • 7.7 20.00 28.28 40.00 48.99 63.25 74.83 89.44
DB21.520 DB22.520 • • 8.8 26.00 36.77 52.00 63.69 82.22 97.28 116.28
DB21.650 DB22.650 • 9.9 32.50 45.96 65.00 79.61 102.77 121.60 145.34
DB21.720 DB22.720 • 10.4 36.00 50.91 72.00 88.18 113.8 134.7 161.00
DB21.800 DB22.800 • • 11.5 40.00 56.57 80.00 97.98 126.49 149.67 178.89
DB31.100 DB32.100 • 12.9 50.00 70.71 100.0 122.47 158.11 187.08 223.61
DB31.118 DB32.118 • 14.0 59.00 83.44 118.0 144.52 186.57 220.76 263.86
DB31.130 DB32.130 • • 14.7 65.00 91.92 130.0 159.22 205.55 243.21 290.69
DB31.160 DB32.160 • 16.3 80.00 113.14 160.0 195.96 252.98 299.33 357.77
DB31.200 DB32.200 • • 18.2 100 141.42 200.0 244.95 316.23 374.17 447.21
DB31.227 DB32.227 • 19.4 113.5 160.51 227.0 278.02 358.92 424.68 507.59
DB31.250 DB32.250 • 20.4 125 176.78 250.0 306.19 395.19 467.71 559.02
DB31.337 DB32.337 • 23.7 168.5 238.29 337.0 412.74 532.84 630.47 753.55


Угол распыления 45° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/8 1/4 3/8 1/2 3/4 1
Модель BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 D HEX
DB13.100 • 1.2 0.50 0.71 1.00 1.22 1.58 1.87 2.24 1/8” 26.5 6.5 13.2 14
DB13.150 • 1.5 0.75 1.06 1.50 1.84 2.37 2.81 3.35 Weight (Metals) = xx gms. Approx
DB13.175 • 1.6 0.87 1.24 1.75 2.14 2.77 3.27 3.91 1/4” 34 10 15.2 16
DB13.200 • 1.7 1.00 1.41 2.00 2.45 3.16 3.74 4.47 Weight (Metals) = 38 gms. Approx
DB13.250 • • 1.9 1.25 1.77 2.50 3.06 3.95 4.68 5.59 3/8 36.5 10 21.2 22
DB13.300 • 2.0 1.50 2.12 3.00 3.67 4.74 5.61 6.71 Weight (Metals) = 90 gms. Approx
DB13.350 • • 2.2 1.75 2.47 3.50 4.29 5.53 6.55 7.83 1/2 48.5 14 26.2 27
DB13.400 • • 2.4 2.00 2.83 4.00 4.90 6.32 7.48 8.94 Weight (Metals) = 176 gms. Approx
DB13.475 • • 2.6 2.37 3.36 4.75 5.82 7.51 8.89 10.62 3/4 58 14 31.5 27
DB13.650 • • 3.1 3.25 4.60 6.50 7.96 10.28 12.16 14.53 Weight (Metals) = 230 gms. Approx
DB13.800 • 3.4 4.00 5.66 8.00 9.80 12.65 14.97 17.89 1 76 18 39.5 36
DB23.100 • 3.8 5.00 7.07 10.00 12.25 15.81 18.71 22.36 Weight (Metals) = 470 gms. Approx
DB23.125 • • 4.2 6.25 8.84 12.50 15.31 19.76 23.39 27.95
DB23.160 • • 4.8 8.00 11.31 16.00 19.60 25.30 29.93 35.78
DB23.180 • 5.2 9.00 12.73 18.00 22.05 28.46 33.67 33.67
DB23.200 • 5.4 10.00 14.14 20.00 24.49 31.62 37.42 44.72
DB23.225 • 5.7 11.25 15.91 22.50 27.56 35.58 42.09 50.31
DB23.250 • 6.0 12.50 17.68 25.00 30.62 39.53 46.77 55.90
DB23.320 • 6.8 16.00 22.63 32.00 39.19 50.60 59.87 71.55


Угол распыления 60° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/8 1/4 3/8 1/2 3/4 1
Модель BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 D HEX
DB14.100 · 1.2 0.50 0.71 1.00 1.22 1.58 1.87 2.24 1/8” 26.5 6.5 13.2 14
DB14.150 · 1.5 0.75 1.06 1.50 1.84 2.37 2.81 3.35 Weight (Metals) = xx gms. Approx
DB14.175 · 1.6 0.87 1.24 1.75 2.14 2.77 3.27 3.91 1/4” 34 10 15.2 16
DB14.200 · 1.7 1.00 1.41 2.00 2.45 3.16 3.74 4.47 Weight (Metals) = 38 gms. Approx
DB14.250 · 1.9 1.25 1.77 2.50 3.06 3.95 4.68 5.59 3/8 36.5 10 21.2 22
DB14.300 · 2.0 1.50 2.12 3.00 3.67 4.74 5.61 6.71 Weight (Metals) = 90 gms. Approx
DB14.350 · · 2.2 1.75 2.47 3.50 4.29 5.53 6.55 7.83 1/2 48.5 14 26.2 27
DB14.400 · · 2.4 2.00 2.83 4.00 4.90 6.32 7.48 8.94 Weight (Metals) = 176 gms. Approx
DB14.475 · · 2.6 2.37 3.36 4.75 5.82 7.51 8.89 10.62 3/4 58 14 31.5 27
DB14.650 · · 3.1 3.25 4.60 6.50 7.96 10.28 12.16 14.53 Weight (Metals) = 230 gms. Approx
DB14.800 · 3.4 4.00 5.66 8.00 9.80 12.65 14.97 17.89 1 76 18 39.5 36
DB24.100 · 3.8 5.00 7.07 10.00 12.25 15.81 18.71 22.36 Weight (Metals) = 470 gms. Approx
DB24.125 · 4.2 6.25 8.84 12.50 15.31 19.76 23.39 27.95
DB24.160 · 4.8 8.00 11.31 16.00 19.60 25.30 29.93 35.78
DB24.180 · 5.2 9.00 12.73 18.00 22.05 28.46 33.67 33.67
DB24.200 · 5.4 10.00 14.14 20.00 24.49 31.62 37.42 44.72
DB24.225 · 5.7 11.25 15.91 22.50 27.56 35.58 42.09 50.31
DB24.250 · · 6.0 12.50 17.68 25.00 30.62 39.53 46.77 55.90
DB24.320 · 6.8 16.00 22.63 32.00 39.19 50.60 59.87 71.55
DB24.400 · 7.3 20.00 28.28 40.00 48.99 63.25 74.83 89.44
DB24.520 · 8.3 26.00 36.77 52.00 63.69 82.22 97.28 116.28


Угол распыления 90° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/8 1/4 3/8 1/2 3/4 1
Модель BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 D HEX
DB16.100 · 1.2 0.50 0.71 1.00 1.22 1.58 1.87 2.24 1/8” 26.5 6.5 13.2 14
DB16.150 · 1.4 0.75 1.06 1.50 1.84 2.37 2.81 3.35 Weight (Metals) = xx gms. Approx
DB16.175 · 1.5 0.87 1.24 1.75 2.14 2.77 3.27 3.91 1/4” 34 10 15.2 16
DB16.200 · 1.6 1.00 1.41 2.00 2.45 3.16 3.74 4.47 Weight (Metals) = 38 gms. Approx
DB16.250 · 1.8 1.25 1.77 2.50 3.06 3.95 4.68 5.59 3/8 36.5 10 21.2 22
DB16.300 · 2.0 1.50 2.12 3.00 3.67 4.74 5.61 6.71 Weight (Metals) = 90 gms. Approx
DB16.350 · · · 2.2 1.75 2.47 3.50 4.29 5.53 6.55 7.83 1/2 48.5 14 26.2 27
DB16.400 · · · 2.3 2.00 2.83 4.00 4.90 6.32 7.48 8.94 Weight (Metals) = 176 gms. Approx
DB16.475 · · 2.5 2.37 3.36 4.75 5.82 7.51 8.89 10.62 3/4 58 14 31.5 27
DB16.650 · · 2.9 3.25 4.60 6.50 7.96 10.28 12.16 14.53 Weight (Metals) = 230 gms. Approx
DB16.800 · · 3.3 4.00 5.66 8.00 9.80 12.65 14.97 17.89 1 76 18 39.5 36
DB26.100 · 3.6 5.00 7.07 10.00 12.25 15.81 18.71 22.36 Weight (Metals) = 470 gms. Approx
DB26.125 · 4.1 6.25 8.84 12.50 15.31 19.76 23.39 27.95
DB26.160 · · 4.6 8.00 11.31 16.00 19.60 25.30 29.93 35.78
DB26.180 · 5.9 9.00 12.73 18.00 22.05 28.46 33.67 33.67
DB26.200 · 5.2 10.00 14.14 20.00 24.49 31.62 37.42 44.72
DB26.225 · 5.5 11.25 15.91 22.50 27.56 35.58 42.09 50.31
DB26.250 · · 5.8 12.50 17.68 25.00 30.62 39.53 46.77 55.90
DB26.320 · · 6.5 16.00 22.63 32.00 39.19 50.60 59.87 71.55
DB26.400 · 7.3 20.00 28.28 40.00 48.99 63.25 74.83 89.44
DB26.520 · · 8.3 26.00 36.77 52.00 63.69 82.22 97.28 116.28
DB26.650 · 9.3 32.50 45.96 65.00 79.61 102.77 121.60 145.34
DB26.720 · 9.8 36.00 50.91 72.00 88.18 113.8 134.7 161.0


Угол распыления 120° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/8 1/4 3/8 1/2 3/4 1
Модель BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 D HEX
DB18.100 · 1.2 0.50 0.71 1.00 1.22 1.58 1.87 2.24 1/8” 26.5 6.5 13.2 14
DB18.150 · 1.5 0.75 1.06 1.50 1.84 2.37 2.81 3.35 Weight (Metals) = xx gms. Approx
DB18.175 · 1.6 0.87 1.24 1.75 2.14 2.77 3.27 3.91 1/4” 34 10 15.2 16
DB18.200 · 1.7 1.00 1.41 2.00 2.45 3.16 3.74 4.47 Weight (Metals) = 38 gms. Approx
DB18.250 · 1.9 1.25 1.77 2.50 3.06 3.95 4.68 5.59 3/8 36.5 10 21.2 22
DB18.300 · 2.0 1.50 2.12 3.00 3.67 4.74 5.61 6.71 Weight (Metals) = 90 gms. Approx
DB18.350 · 2.3 1.75 2.47 3.50 4.29 5.53 6.55 7.83 1/2 48.5 14 26.2 27
DB18.400 · · · 2.5 2.00 2.83 4.00 4.90 6.32 7.48 8.94 Weight (Metals) = 176 gms. Approx
DB18.475 · · · 2.7 2.37 3.36 4.75 5.82 7.51 8.89 10.62 3/4 58 14 31.5 27
DB18.650 · · 3.1 3.25 4.60 6.50 7.96 10.28 12.16 14.53 Weight (Metals) = 230 gms. Approx
DB18.800 · · 3.5 4.00 5.66 8.00 9.80 12.65 14.97 17.89 1 76 18 39.5 36
DB28.100 · 3.9 5.00 7.07 10.00 12.25 15.81 18.71 22.36 Weight (Metals) = 470 gms. Approx
DB28.125 · 4.3 6.25 8.84 12.50 15.31 19.76 23.39 27.95
DB28.160 · · 4.9 8.00 11.31 16.00 19.60 25.30 29.93 35.78
DB28.180 · 5.2 9.00 12.73 18.00 22.05 28.46 33.67 33.67
DB28.200 · 5.5 10.00 14.14 20.00 24.49 31.62 37.42 44.72
DB28.225 · 5.8 11.25 15.91 22.50 27.56 35.58 42.09 50.31
DB28.250 · · 6.1 12.50 17.68 25.00 30.62 39.53 46.77 55.90
DB28.320 · · 6.9 16.00 22.63 32.00 39.19 50.60 59.87 71.55
DB28.400 · 7.7 20.00 28.28 40.00 48.99 63.25 74.83 89.44
DB28.520 · 8.8 26.00 36.77 52.00 63.69 82.22 97.28 116.28
DB28.650 · 9.9 32.50 45.96 65.00 79.61 102.77 121.60 145.34
DB28.720 · 10.4 36.00 50.91 72.00 88.18 113.8 134.7 161.0
