Полноконусные форсунки DA серии

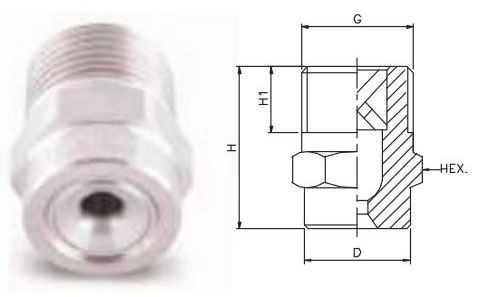

Design for 1/8″, 1/4″, 3/8″ & 1/2″

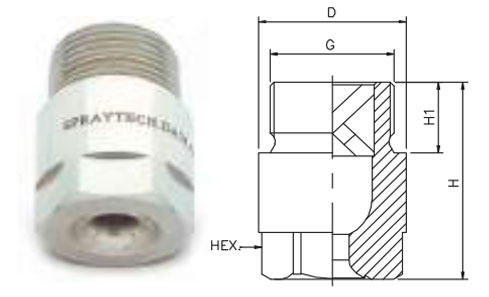

Design for 3/4″ & 2″

Модель Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
Угол распыления 1/8 1/4 3/8 1/2 3/4 1  1 1/4 1 1/2 2
 15° 30° BSP BSP BSP BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 D HEX
DA11.100 DA12.100 · 1.2 0.50 0.71 1.00 1.22 1.58 1.87 2.24 1/8” 18 6.5 10 11
DA11.150 DA12.150 · 1.5 0.75 1.06 1.50 1.84 2.37 2.81 3.35 1/8" Weight (Metals) = 9 gms. Approx
DA11.175 DA12.175 · 1.6 0.87 1.24 1.75 2.14 2.77 3.27 3.91 1/4” 22 10 13 14
DA11.200 DA12.200 · 1.7 1.00 1.41 2.00 2.45 3.16 3.74 4.47 1/4" Weight (Metals) = 17 gms. Approx
DA11.250 DA12.250 · 1.9 1.25 1.77 2.50 3.06 3.95 4.68 5.59 3/8 25 10 16 17
DA11.300 DA12.300 · 2.0 1.50 2.12 3.00 3.67 4.74 5.61 6.71 1/4" Weight (Metals) = 30 gms. Approx
DA11.350 DA12.350 · 2.3 1.75 2.47 3.50 4.29 5.53 6.55 7.83 1/2 32 13.2 21 22
DA11.400 DA12.400 · 2.5 2.00 2.83 4.00 4.90 6.32 7.48 8.94 1/4" Weight (Metals) = 66 gms. Approx
DA11.475 DA12.475 · · 2.7 2.37 3.36 4.75 5.82 7.51 8.89 10.62 3/4 42 15 32 27
DA11.650 DA12.650 · 3.1 3.25 4.60 6.50 7.96 10.28 12.16 14.53 1/4" Weight (Metals) = 155 gms. Approx
DA11.800 DA12.800 · 3.5 4.00 5.66 8.00 9.80 12.65 14.97 17.89 1 56 17 39 36
DA21.100 DA22.100 · · 3.9 5.00 7.07 10.00 12.25 15.81 18.71 22.36 1/4" Weight (Metals) = 367 gms. Approx
DA21.125 DA22.125 · 4.3 6.25 8.84 12.50 15.31 19.76 23.39 27.95  1 1/4 74 19 49 41
DA21.160 DA22.160 · · 4.9 8.00 11.31 16.00 19.60 25.30 29.93 35.78 1/4" Weight (Metals) = 670 gms. Approx
DA21.180 DA22.180 · 5.2 9.00 12.73 18.00 22.05 28.46 33.67 33.67 1 1/2 85 22 59 50
DA21.200 DA22.200 · 5.5 10.00 14.14 20.00 24.49 31.62 37.42 44.72 1/4" Weight (Metals) = 1172 gms. Approx
DA21.225 DA22.225 · 5.8 11.25 15.91 22.50 27.56 35.58 42.09 50.31 2 106 24 68 60
DA21.250 DA22.250 · · 6.1 12.50 17.68 25.00 30.62 39.53 46.77 55.90 1/4" Weight (Metals) = 1896 gms. Approx
DA21.320 DA22.320 · 6.9 16.00 22.63 32.00 39.19 50.60 59.87 71.55
DA21.400 DA22.400 · 7.7 20.00 28.28 40.00 48.99 63.25 74.83 89.44
DA21.520 DA22.520 · · 8.8 26.00 36.77 52.00 63.69 82.22 97.28 116.28
DA21.650 DA22.650 · 9.9 32.50 45.96 65.00 79.61 102.77 121.60 145.34
DA21.720 DA22.720 · 10.4 36.00 50.91 72.00 88.18 113.8 134.7 161.00
DA21.800 DA22.800 · · 11.5 40.00 56.57 80.00 97.98 126.49 149.67 178.89
DA31.100 DA32.100 · 12.9 50.00 70.71 100.0 122.47 158.11 187.08 223.61
DA31.118 DA32.118 · 14.0 59.00 83.44 118.0 144.52 186.57 220.76 263.86
DA31.130 DA32.130 · · 14.7 65.00 91.92 130.0 159.22 205.55 243.21 290.69
DA31.160 DA32.160 · 16.3 80.00 113.14 160.0 195.96 252.98 299.33 357.77
DA31.200 DA32.200 · · 18.2  100  141.42 200.0  244.95  316.23  374.17 447.21
DA31.227 DA32.227 · 19.4 113.5 160.51 227.0 278.02 358.92 424.68 507.59
DA31.250 DA32.250 · 20.4 125 176.78 250.0 306.19 395.19 467.71 559.02
DA31.337 DA32.337 · 23.7 168.5 238.29 337.0 412.74 532.84 630.47 753.55


Угол распыления 45° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/8 1/4 3/8 1/2 3/4 1
Модель BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 D HEX
DA13.100 · 1.2 0.50 0.71 1.00 1.22 1.58 1.87 2.24 1/8” 18 6.5 10 11
DA13.150 · 1.5 0.75 1.06 1.50 1.84 2.37 2.81 3.35 1/8" Weight (Metals) = 9 gms. Approx
DA13.175 · 1.6 0.87 1.24 1.75 2.14 2.77 3.27 3.91 1/4” 22 10 13 14
DA13.200 · 1.7 1.00 1.41 2.00 2.45 3.16 3.74 4.47 1/4" Weight (Metals) = 17 gms. Approx
DA13.250 · · 1.9 1.25 1.77 2.50 3.06 3.95 4.68 5.59 3/8 25 10 16 17
DA13.300 · 2.0 1.50 2.12 3.00 3.67 4.74 5.61 6.71 1/4" Weight (Metals) = 30 gms. Approx
DA13.350 · · 2.2 1.75 2.47 3.50 4.29 5.53 6.55 7.83 1/2 32 13.2 21 22
DA13.400 · · 2.4 2.00 2.83 4.00 4.90 6.32 7.48 8.94 1/4" Weight (Metals) = 66 gms. Approx
DA13.475 · · 2.6 2.37 3.36 4.75 5.82 7.51 8.89 10.62 3/4 42 15 32 27
DA13.650 · · 3.1 3.25 4.60 6.50 7.96 10.28 12.16 14.53 1/4" Weight (Metals) = 155 gms. Approx
DA13.800 · 3.4 4.00 5.66 8.00 9.80 12.65 14.97 17.89 1 56 17 39 36
DA23.100 · 3.8 5.00 7.07 10.00 12.25 15.81 18.71 22.36 1/4" Weight (Metals) = 367 gms. Approx
DA23.125 · · 4.2 6.25 8.84 12.50 15.31 19.76 23.39 27.95
DA23.160 · · 4.8 8.00 11.31 16.00 19.60 25.30 29.93 35.78
DA23.180 · 5.2 9.00 12.73 18.00 22.05 28.46 33.67 33.67
DA23.200 · 5.4 10.00 14.14 20.00 24.49 31.62 37.42 44.72
DA23.225 · 5.7 11.25 15.91 22.50 27.56 35.58 42.09 50.31
DA23.250 · 6.0 12.50 17.68 25.00 30.62 39.53 46.77 55.90
DA23.320 · 6.8 16.00 22.63 32.00 39.19 50.60 59.87 71.55


Угол распыления 60° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/8 1/4 3/8 1/2 3/4 1
Модель BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 D HEX
DA14.100 · 1.2 0.50 0.71 1.00 1.22 1.58 1.87 2.24 1/8” 18 6.5 10 11
DA14.150 · 1.5 0.75 1.06 1.50 1.84 2.37 2.81 3.35 1/8" Weight (Metals) = 9 gms. Approx
DA14.175 · 1.6 0.87 1.24 1.75 2.14 2.77 3.27 3.91 1/4” 22 10 13 14
DA14.200 · 1.7 1.00 1.41 2.00 2.45 3.16 3.74 4.47 1/4" Weight (Metals) = 17 gms. Approx
DA14.250 · 1.9 1.25 1.77 2.50 3.06 3.95 4.68 5.59 3/8 25 10 16 17
DA14.300 · 2.0 1.50 2.12 3.00 3.67 4.74 5.61 6.71 1/4" Weight (Metals) = 30 gms. Approx
DA14.350 · · 2.2 1.75 2.47 3.50 4.29 5.53 6.55 7.83 1/2 32 13.2 21 22
DA14.400 · · 2.4 2.00 2.83 4.00 4.90 6.32 7.48 8.94 1/4" Weight (Metals) = 66 gms. Approx
DA14.475 · · 2.6 2.37 3.36 4.75 5.82 7.51 8.89 10.62 3/4 42 15 32 27
DA14.650 · · 3.1 3.25 4.60 6.50 7.96 10.28 12.16 14.53 1/4" Weight (Metals) = 155 gms. Approx
DA14.800 · 3.4 4.00 5.66 8.00 9.80 12.65 14.97 17.89 1 56 17 39 36
DA24.100 · 3.8 5.00 7.07 10.00 12.25 15.81 18.71 22.36 1/4" Weight (Metals) = 367 gms. Approx
DA24.125 · 4.2 6.25 8.84 12.50 15.31 19.76 23.39 27.95
DA24.160 · 4.8 8.00 11.31 16.00 19.60 25.30 29.93 35.78
DA24.180 · 5.2 9.00 12.73 18.00 22.05 28.46 33.67 33.67
DA24.200 · 5.4 10.00 14.14 20.00 24.49 31.62 37.42 44.72
DA24.225 · 5.7 11.25 15.91 22.50 27.56 35.58 42.09 50.31
DA24.250 · · 6.0 12.50 17.68 25.00 30.62 39.53 46.77 55.90
DA24.320 · 6.8 16.00 22.63 32.00 39.19 50.60 59.87 71.55
DA24.400 · 7.3 20.00 28.28 40.00 48.99 63.25 74.83 89.44
DA24.520 · 8.3 26.00 36.77 52.00 63.69 82.22 97.28 116.28


Угол распыления 90° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/8 1/4 3/8 1/2 3/4 1
Модель BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 D HEX
DA16.100 · 1.2 0.50 0.71 1.00 1.22 1.58 1.87 2.24 1/8” 18 6.5 10 11
DA16.150 · 1.4 0.75 1.06 1.50 1.84 2.37 2.81 3.35 1/8" Weight (Metals) = 9 gms. Approx
DA16.175 · 1.5 0.87 1.24 1.75 2.14 2.77 3.27 3.91 1/4” 22 10 13 14
DA16.200 · 1.6 1.00 1.41 2.00 2.45 3.16 3.74 4.47 1/4" Weight (Metals) = 17 gms. Approx
DA16.250 · 1.8 1.25 1.77 2.50 3.06 3.95 4.68 5.59 3/8 25 10 16 17
DA16.300 · 2.0 1.50 2.12 3.00 3.67 4.74 5.61 6.71 1/4" Weight (Metals) = 30 gms. Approx
DA16.350 · · · 2.2 1.75 2.47 3.50 4.29 5.53 6.55 7.83 1/2 32 13.2 21 22
DA16.400 · · · 2.3 2.00 2.83 4.00 4.90 6.32 7.48 8.94 1/4" Weight (Metals) = 66 gms. Approx
DA16.475 · · 2.5 2.37 3.36 4.75 5.82 7.51 8.89 10.62 3/4 42 15 32 27
DA16.650 · · 2.9 3.25 4.60 6.50 7.96 10.28 12.16 14.53 1/4" Weight (Metals) = 155 gms. Approx
DA16.800 · · 3.3 4.00 5.66 8.00 9.80 12.65 14.97 17.89 1 56 17 39 36
DA26.100 · 3.6 5.00 7.07 10.00 12.25 15.81 18.71 22.36 1/4" Weight (Metals) = 367 gms. Approx
DA26.125 · 4.1 6.25 8.84 12.50 15.31 19.76 23.39 27.95
DA26.160 · · 4.6 8.00 11.31 16.00 19.60 25.30 29.93 35.78
DA26.180 · 5.9 9.00 12.73 18.00 22.05 28.46 33.67 33.67
DA26.200 · 5.2 10.00 14.14 20.00 24.49 31.62 37.42 44.72
DA26.225 · 5.5 11.25 15.91 22.50 27.56 35.58 42.09 50.31
DA26.250 · · 5.8 12.50 17.68 25.00 30.62 39.53 46.77 55.90
DA26.320 · · 6.5 16.00 22.63 32.00 39.19 50.60 59.87 71.55
DA26.400 · 7.3 20.00 28.28 40.00 48.99 63.25 74.83 89.44
DA26.520 · · 8.3 26.00 36.77 52.00 63.69 82.22 97.28 116.28
DA26.650 · 9.3 32.50 45.96 65.00 79.61 102.77 121.60 145.34
DA26.720 · 9.8 36.00 50.91 72.00 88.18 113.8 134.7 161.0


Угол распыления 120° Соединение Диаметр отверстий Производительность в л/мин при разном давлении Размер GA в миллиметрах
1/8 1/4 3/8 1/2 3/4 1
Модель BSP BSP BSP BSP BSP BSP Давление в барах
0.5 1.0 2.0 3.0 5.0 7.0 10.0 CONN. H H1 D HEX
DA18.100 · 1.2 0.50 0.71 1.00 1.22 1.58 1.87 2.24 1/8” 18 6.5 10 11
DA18.150 · 1.5 0.75 1.06 1.50 1.84 2.37 2.81 3.35 1/8" Weight (Metals) = 9 gms. Approx
DA18.175 · 1.6 0.87 1.24 1.75 2.14 2.77 3.27 3.91 1/4” 22 10 13 14
DA18.200 · 1.7 1.00 1.41 2.00 2.45 3.16 3.74 4.47 1/4" Weight (Metals) = 17 gms. Approx
DA18.250 · 1.9 1.25 1.77 2.50 3.06 3.95 4.68 5.59 3/8 25 10 16 17
DA18.300 · 2.0 1.50 2.12 3.00 3.67 4.74 5.61 6.71 1/4" Weight (Metals) = 30 gms. Approx
DA18.350 · 2.3 1.75 2.47 3.50 4.29 5.53 6.55 7.83 1/2 32 13.2 21 22
DA18.400 · · · 2.5 2.00 2.83 4.00 4.90 6.32 7.48 8.94 1/4" Weight (Metals) = 66 gms. Approx
DA18.475 · · · 2.7 2.37 3.36 4.75 5.82 7.51 8.89 10.62 3/4 42 15 32 27
DA18.650 · · 3.1 3.25 4.60 6.50 7.96 10.28 12.16 14.53 1/4" Weight (Metals) = 155 gms. Approx
DA18.800 · · 3.5 4.00 5.66 8.00 9.80 12.65 14.97 17.89 1 56 17 39 36
DA28.100 · 3.9 5.00 7.07 10.00 12.25 15.81 18.71 22.36 1/4" Weight (Metals) = 367 gms. Approx
DA28.125 · 4.3 6.25 8.84 12.50 15.31 19.76 23.39 27.95
DA28.160 · · 4.9 8.00 11.31 16.00 19.60 25.30 29.93 35.78
DA28.180 · 5.2 9.00 12.73 18.00 22.05 28.46 33.67 33.67
DA28.200 · 5.5 10.00 14.14 20.00 24.49 31.62 37.42 44.72
DA28.225 · 5.8 11.25 15.91 22.50 27.56 35.58 42.09 50.31
DA28.250 · · 6.1 12.50 17.68 25.00 30.62 39.53 46.77 55.90
DA28.320 · · 6.9 16.00 22.63 32.00 39.19 50.60 59.87 71.55
DA28.400 · 7.7 20.00 28.28 40.00 48.99 63.25 74.83 89.44
DA28.520 · 8.8 26.00 36.77 52.00 63.69 82.22 97.28 116.28
DA28.650 · 9.9 32.50 45.96 65.00 79.61 102.77 121.60 145.34
DA28.720 · 10.4 36.00 50.91 72.00 88.18 113.8 134.7 161.0
