Пневматические форсунки CAEA серии

Пневматические форсунки
Пневматические форсунки Серия CAEA
Orifice size & water flow Water Pressure [kg/cm2]
Pressure 0.2 Bar Pressure 0.4 Bar Pressure 0.6 Bar Pressure 0.8 Bar Pressure 1 Bar Pressure 1.2 Bar Pressure 1.4 Bar Pressure 1.6
 Bar		 Pressure 1.8 Bar Pressure 2 Bar
0.5 ML/MIN 80 100 130 150 170 190 200 210 210 210
LPH 4.8 6 7.8 9 10.2 11.4 12 12.6 12.6 12.6
0.6 ML/MIN 160 200 240 260 300 320 340 360 380 400
LPH 9.6 12 14.4 15.6 18 19.2 20.4 21.6 22.8 24
0.7 ML/MIN 170 220 250 300 320 340 360 400 420 440
LPH 10.2 13.2 15 18 19.2 20.4 21.6 24 25.2 26.4
0.8 ML/MIN 260 300 360 400 440 480 510 540 580 610
LPH 15.6 18 21.6 24 26.4 28.8 30.6 32.4 34.8 36.6
0.9 ML/MIN 280 320 380 420 470 500 540 580 600 640
LPH 16.8 19.2 22.8 25.2 28.2 30 32.4 34.8 36 38.4
1 ML/MIN 340 420 500 560 620 680 720 740 760 780
LPH 20.4 25.2 30 33.6 37.2 40.8 43.2 44.4 45.6 46.8
1.1 ML/MIN
LPH
1.2 ML/MIN 440 540 640 760 840 900 990 1040 1080 1100
LPH 26.4 32.4 38.4 45.6 50.4 54 59.4 62.4 64.8 66
1.3 ML/MIN 740 760 880 1000 1100 1200 1300 1380 1200 1260
LPH 44.4 45.6 52.8 60 66 72 78 82.8 72 75.6
1.4 ML/MIN 760 880 940 1100 1200 1300 1400 1500 1560 1600
LPH 45.6 52.89 56.4 66 72 78 84 90 93.6 96
1.5 ML/MIN 800 1000 1200 1300 1440 1580 1660 1900 1980
LPH 48 60 72 78 86.4 94.8 99.6 114 118.8


Соединение Модель 0.7 Bar Liquid 1.5 Bar Liquid 2.0 Bar Liquid 3.0 Bar Liquid 4.0 Bar Liquid Spray Dimensions
Air
(bar)		 l/h Nm3
h		 Air
(bar)		 l/h Nm3
h		 Air
(bar)		 l/h Nm3
h		 Air
(bar)		 l/h Nm3
h		 Air
(bar)		 l/h Nm3
h		 “C”

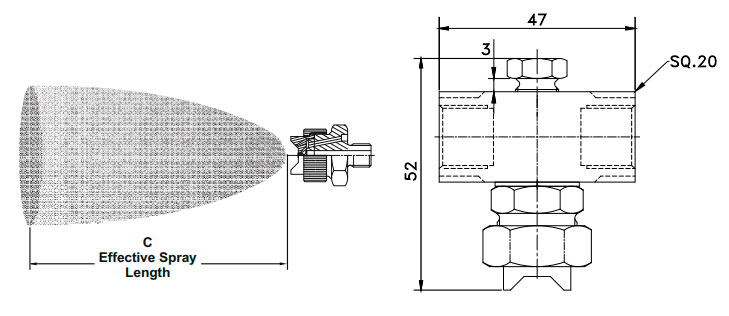

Effective Spray
Length(mm)		 Max.
Spray Length
(m)
1/8 или 1/4 CAEA 350 0.6
0.7
1.1
1.4		 13 5.46
6.12
7.80
9.36		 0.7
1.1
1.8
2.1		 16 6.12
7.80
11.0
12.6		 1.4
2.1
2.5
2.8		 25 9.36
12.6
14.1
15.6		 2.1
2.8
3.5
4.2		 37 12.6
15.6
18.6
21.6		 3.2
4.2
5.3
5.		 52 17.1
21.6
25.8
27.3		 480
560
580
660
640
690		 3.8
4.3
4.0
4.6
5.2
4.6





1/8 или 1/4 CAEA 400 0.7
1.0
1.4
1.8
2.1
2.8
3.5		 13 5.10
6.12
6.96
8.34
9.36
11.7
13.6		 1.0
1.4
1.8
2.1
2.8
3.5
4.2		 16 6.12
6.96
8.34
9.36
11.7
13.6
16.0		 1.4
1.8
2.1
2.5
2.8
3.5
4.2		 25 6.96
8.34
9.36
10.7
11.7
13.6
16.0		 2.5
2.8
3.5
4.2
4.9
5.6
6.3		 37 10.7
11.7
13.6
16.0
18.7
21.6
24.7		 3.2
3.5
3.9
4.2
4.9
5.6
6.3		 52 12.7
13.9
15.3
16.5
18.8
21.6
24.7		 250
250
280
280
360
370
320		 1.7
2.7
3.0
3.5
3.7
4.3
4.9






1/8 или 1/4 CAEA 450 0.6
1.1
1.4
1.8		 18 5.46
7.80
9.36
11.0		 0.7
1.4
1.8
2.1		 22 6.12
9.36
11.0
12.6		 1.1
1.8
2.5
2.8		 33 7.80
11.0
14.1
15.6		 2.5
3.2
3.9
4.2		 48 14.1
17.1
19.8
21.6		 3.5
4.6
6.0
6.7		 68 18.6
22.6
28.5
31.5		 510
640
640
610
580
610
600		 3.5
3.0
3.8
4.3
4.9
5.2
4.0






1/8 или 1/4 CAEA 500 0.7
1.0
1.4
1.8
2.1
2.8
3.5		 18 5.10
6.12
6.96
8.34
9.36
11.7
13.6		 1.4
1.8
2.1
2.5
2.8
3.5
4.2		 22 6.96
8.34
9.36
10.7
11.7
13.6
16.0		 .8
2.1
2.5
2.8
3.5
4.2
4.9		 33 8.34
9.36
10.7
11.7
13.6
16.0
18.7		 2.8
3.2
3.5
4.2
4.9
5.6
6.3		 48 11.7
12.7
13.6
16.0
18.7
21.6
24.7		 3.5
4.2
4.9
5.3
5.6
6.3
6.6		 68 13.9
16.5
18.8
20.4
21.6
24.7
25.7		 270
270
330
360
370
370
360		 2.1
3.0
3.4
3.8
4.0
4.9
5.8






1/8 или 1/4 CAEA 550 0.7
1.1
1.4
1.8		 36 6.12
7.80
9.36
11.0		 1.1
1.4
2.1
2.5		 45 7.80
9.36
12.6
14.1		 1.8
2.1
2.8
3.2		 68 11.0
12.6
15.6
17.1		 3.2
3.5
4.9
5.9		 100 17.1
18.6
24.3
27.3		 5.3
6.0
6.7
7.0		 141 25.8
28.5
31.5
33.0		 760
810
790
760
660
840
790		 3.0
4.0
4.3
4.9
5.8
4.3
5.8






1/8 или 1/4 CAEA 600 1.0
1.4
1.8
2.1
2.5
2.8
3.5		 36 6.12
6.96
8.34
9.36
10.7
11.7
13.6		 1.8
2.1
2.5
2.8
3.2
3.5
4.2		 45 8.34
9.36
10.7
11.7
12.7
13.6
16.0		 2.5
2.8
3.2
3.5
4.2
4.9
5.6		 68 10.7
11.7
12.7
13.6
16.0
18.7
21.6		 3.2
3.5
3.9
4.2
4.9
5.6
6.3		 100 12.7
13.6
14.8
16.0
18.7
21.6
24.7		 3.9
4.2
4.6
4.9
5.6
6.3
7.0		 141 15.3
16.5
17.8
18.8
21.6
24.7
27.2		 250
290
360
390
380
390
380		 2.7
3.0
3.5
3.7
4.0
4.3
5.9






1/8 или 1/4 CAEA 650 1.8
2.1
2.5
2.8
3.2
3.5
4.2		 36 14.1
15.6
18.0
19.8
21.3
22.8
26.7		 1.8
2.1
2.5
2.8
3.2
3.5
4.2		 45 14.1
15.6
18.0
19.8
21.3
22.8
26.7		 2.5
2.8
3.2
3.5
3.9
4.2
4.9		 68 18.0
19.8
21.3
22.8
24.6
26.7
31.2		 3.9
4.2
4.6
4.9
5.3
5.6
6.3		 100 24.6
26.7
28.8
31.2
33.9
36.0
41.1		 290
300
300
320
340
330
340		 3.0
3.4
4.0
4.3
4.6
4.7
5.5






1/8 или 1/4 CAEA 700 2.1
2.5
2.8
3.2
3.5
4.2
4.9		 64 15.6
18.0
19.8
21.3
22.8
26.7
31.2		 2.8
3.2
3.5
3.9
4.2
4.9
5.6		 78 19.8
21.3
22.8
24.8
26.7
31.2
36.0		 3.9
4.2
4.6
4.9
5.3
5.6
6.3		 119 24.6
26.7
28.8
31.2
33.9
36.0
41.1		 4.9
5.3
5.6
6.0
6.3		 175 31.2
33.9
36.0
38.4
41.1		 340
360
360
360
380
380		 3.5
4.3
4.9
5.5
5.5
5.8
6.1






1/8 или 1/4 CAEA 750 2.8
3.2
3.5
3.9
4.2
4.6
4.9		 102 19.8
21.3
22.8
24.6
26.7
28.8
31.2		 3.5
3.8
4.2
4.6
4.9
5.3
5.6		 125 22.8
24.6
26.7
28.8
31.2
33.9
69.0		 4.6
4.9
5.3
5.6
6.0
6.3		 192 28.8
31.2
33.9
36.0
38.4
41.1		 5.6
6.0
6.3		 280 34.0
38.4
41.1		 360
370
370
380
410
410
410		 4.6
4.9
5.2
5.5
5.5
5.8
6.1
