Плоскоструйные форсунки СА серии
| Угол распыления 15° | Соединение | Диаметр отверстий | Производительность в л/мин при разном давлении | Размер GA в миллиметрах | |||||||||||||
| 1/8 | 1/4 | ||||||||||||||||
| Модель | BSP BSPT NPT |
BSP BSPT NPT |
Давление в барах | ||||||||||||||

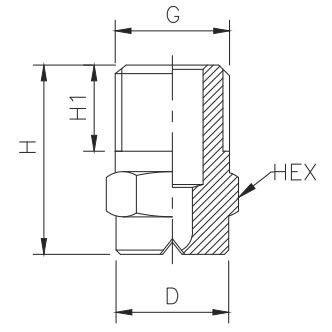

| 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 7.0 | 10.0 | CONN. | H | H1 | D | HEX | ||||||
| CA11.050 | · | · | 0.8 | 0.25 | 0.35 | 0.50 | 0.61 | 0.79 | 0.94 | 1.12 | 1/8” | 18 | 6.5 | 10.2 | 11 | ||
| CA11.075 | · | · | 1.0 | 0.37 | 0.53 | 0.75 | 0.92 | 1.19 | 1.40 | 1.68 | 1/8" Weight (Metals) = 7 gms. Approx | ||||||
| CA11.100 | · | · | 1.2 | 0.50 | 0.71 | 1.00 | 1.22 | 1.58 | 1.87 | 2.24 | 1/4” | 22 | 10 | 13 | 14 | ||
| CA11.150 | · | · | 1.5 | 0.75 | 1.06 | 1.50 | 1.84 | 2.37 | 2.81 | 3.35 | 1/4" Weight (Metals) = 18 gms. Approx | ||||||
| CA11.175 | · | · | 1.6 | 0.87 | 1.24 | 1.75 | 2.14 | 2.77 | 3.27 | 3.91 | |||||||
| CA11.200 | · | · | 1.7 | 1.00 | 1.41 | 2.00 | 2.45 | 3.16 | 3.74 | 4.47 | |||||||
| CA11.250 | · | · | 1.9 | 1.25 | 1.77 | 2.50 | 3.06 | 3.95 | 4.68 | 5.59 | |||||||
| CA11.300 | · | · | 2.1 | 1.5 | 2.12 | 3.0 | 3.67 | 4.74 | 5.61 | 6.71 | |||||||
| CA11.350 | · | · | 2.3 | 1.75 | 2.47 | 3.50 | 4.29 | 5.53 | 6.55 | 7.83 | |||||||
| CA11.400 | · | · | 2.4 | 2.00 | 2.83 | 4.00 | 4.90 | 6.32 | 7.48 | 8.94 | |||||||
| CA11.475 | · | · | 2.7 | 2.37 | 3.36 | 4.75 | 5.82 | 7.51 | 8.89 | 10.62 | |||||||
| CA11.650 | · | · | 3.1 | 3.25 | 4.60 | 6.50 | 7.96 | 10.28 | 12.16 | 14.53 | |||||||
| CA11.800 | · | · | 3.5 | 4.00 | 5.66 | 8.00 | 9.80 | 12.65 | 14.97 | 17.89 | |||||||
| CA21.100 | · | 3.9 | 5.00 | 7.07 | 10.00 | 12.25 | 15.81 | 18.71 | 22.36 | ||||||||
| CA21.125 | · | 4.3 | 6.25 | 8.84 | 12.50 | 15.31 | 19.76 | 23.39 | 27.95 | ||||||||
| CA21.160 | · | 4.9 | 8.00 | 11.31 | 16.00 | 19.60 | 25.30 | 29.93 | 35.78 | ||||||||
| CA21.180 | · | 5.2 | 9.00 | 12.73 | 18.00 | 22.05 | 28.46 | 33.67 | 40.25 | ||||||||
| CA21.200 | · | 5.5 | 10.00 | 14.14 | 20.00 | 24.49 | 31.62 | 37.42 | 44.72 | ||||||||
| CA21.225 | · | 5.8 | 11.25 | 15.91 | 22.50 | 27.56 | 35.58 | 42.09 | 50.31 | ||||||||
| CA21.250 | · | 6.1 | 12.50 | 17.68 | 25.00 | 30.62 | 39.53 | 46.77 | 55.90 | ||||||||
| Угол распыления 30° | Соединение | Диаметр отверстий | Производительность в л/мин при разном давлении | Размер GA в миллиметрах | |||||||||||||
| 1/8 | 1/4 | ||||||||||||||||
| Модель | BSP BSPT NPT |
BSP BSPT NPT |
Давление в барах | ||||||||||||||
| 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 7.0 | 10.0 | CONN. | H | H1 | D | HEX | ||||||
| CA12.050 | · | · | 0.8 | 0.25 | 0.35 | 0.50 | 0.61 | 0.79 | 0.94 | 1.12 | 1/8” | 18 | 6.5 | 10.2 | 11 | ||
| CA12.075 | · | · | 1.0 | 0.37 | 0.53 | 0.75 | 0.92 | 1.19 | 1.40 | 1.68 | 1/8" Weight (Metals) = 7 gms. Approx | ||||||
| CA12.100 | · | · | 1.2 | 0.50 | 0.71 | 1.00 | 1.22 | 1.58 | 1.87 | 2.24 | 1/4” | 22 | 10 | 13 | 14 | ||
| CA12.150 | · | · | 1.5 | 0.75 | 1.06 | 1.50 | 1.84 | 2.37 | 2.81 | 3.35 | 1/4" Weight (Metals) = 18 gms. Approx | ||||||
| CA12.175 | · | · | 1.6 | 0.87 | 1.24 | 1.75 | 2.14 | 2.77 | 3.27 | 3.91 | |||||||
| CA12.200 | · | · | 1.7 | 1.00 | 1.41 | 2.00 | 2.45 | 3.16 | 3.74 | 4.47 | |||||||
| CA12.250 | · | · | 1.9 | 1.25 | 1.77 | 2.50 | 3.06 | 3.95 | 4.68 | 5.59 | |||||||
| CA12.300 | · | · | 2.1 | 1.5 | 2.12 | 3.0 | 3.67 | 4.74 | 5.61 | 6.71 | |||||||
| CA12.350 | · | · | 2.3 | 1.75 | 2.47 | 3.50 | 4.29 | 5.53 | 6.55 | 7.83 | |||||||
| CA12.400 | · | · | 2.4 | 2.00 | 2.83 | 4.00 | 4.90 | 6.32 | 7.48 | 8.94 | |||||||
| CA12.475 | · | · | 2.7 | 2.37 | 3.36 | 4.75 | 5.82 | 7.51 | 8.89 | 10.62 | |||||||
| CA12.650 | · | · | 3.1 | 3.25 | 4.60 | 6.50 | 7.96 | 10.28 | 12.16 | 14.53 | |||||||
| CA12.800 | · | · | 3.5 | 4.00 | 5.66 | 8.00 | 9.80 | 12.65 | 14.97 | 17.89 | |||||||
| CA22.100 | · | 3.9 | 5.00 | 7.07 | 10.00 | 12.25 | 15.81 | 18.71 | 22.36 | ||||||||
| CA22.125 | · | 4.3 | 6.25 | 8.84 | 12.50 | 15.31 | 19.76 | 23.39 | 27.95 | ||||||||
| CA22.160 | · | 4.9 | 8.00 | 11.31 | 16.00 | 19.60 | 25.30 | 29.93 | 35.78 | ||||||||
| CA22.180 | · | 5.2 | 9.00 | 12.73 | 18.00 | 22.05 | 28.46 | 33.67 | 40.25 | ||||||||
| CA22.200 | · | 5.5 | 10.00 | 14.14 | 20.00 | 24.49 | 31.62 | 37.42 | 44.72 | ||||||||
| CA22.225 | · | 5.8 | 11.25 | 15.91 | 22.50 | 27.56 | 35.58 | 42.09 | 50.31 | ||||||||
| CA22.250 | · | 6.1 | 12.50 | 17.68 | 25.00 | 30.62 | 39.53 | 46.77 | 55.90 | ||||||||
| Угол распыления 45° | Соединение | Диаметр отверстий | Производительность в л/мин при разном давлении | Размер GA в миллиметрах | |||||||||||||
| 1/8” | 1/4” | 3/8” | 1/2” | ||||||||||||||
| Модель | BSP BSPT NPT |
BSP BSPT NPT |
BSP BSPT NPT |
BSP BSPT NPT |
Давление в барах | ||||||||||||
| 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 7.0 | 10.0 | CONN. | H | H1 | D | HEX | ||||||
| CA13.050 | · | · | 0.8 | 0.25 | 0.35 | 0.50 | 0.61 | 0.79 | 0.94 | 1.12 | 1/8” | 18 | 6.5 | 10.2 | 11 | ||
| CA13.075 | · | · | 1.0 | 0.37 | 0.53 | 0.75 | 0.92 | 1.19 | 1.40 | 1.68 | 1/8" Weight (Metals) = 7 gms. Approx | ||||||
| CA13.100 | · | · | 1.2 | 0.50 | 0.71 | 1.00 | 1.22 | 1.58 | 1.87 | 2.24 | 1/4” | 22 | 10 | 13 | 14 | ||
| CA13.150 | · | · | 1.5 | 0.75 | 1.06 | 1.50 | 1.84 | 2.37 | 2.81 | 3.35 | 1/4" Weight (Metals) = 18 gms. Approx | ||||||
| CA13.175 | · | · | 1.6 | 0.87 | 1.24 | 1.75 | 2.14 | 2.77 | 3.27 | 3.91 | 3/8” | 25 | 12 | 16 | 17 | ||
| CA13.200 | · | · | 1.7 | 1.00 | 1.41 | 2.00 | 2.45 | 3.16 | 3.74 | 4.47 | 3/8" Weight (Metals) = 28 gms. Approx | ||||||
| CA13.250 | · | · | 1.9 | 1.25 | 1.77 | 2.50 | 3.06 | 3.95 | 4.68 | 5.59 | 1/2” | 27 | 13.2 | 21 | 22 | ||
| CA13.300 | · | · | 2.1 | 1.5 | 2.12 | 3.00 | 3.67 | 4.74 | 5.61 | 6.71 | 1/2" Weight (Metals) = 42 gms. Approx | ||||||
| CA13.350 | · | · | 2.3 | 1.75 | 2.47 | 3.50 | 4.29 | 5.53 | 6.55 | 7.83 | |||||||
| CA13.400 | · | · | 2.4 | 2.00 | 2.83 | 4.00 | 4.90 | 6.32 | 7.48 | 8.94 | |||||||
| CA13.475 | · | · | 2.7 | 2.37 | 3.36 | 4.75 | 5.82 | 7.51 | 8.89 | 10.62 | |||||||
| CA13.650 | · | · | 3.1 | 3.25 | 4.60 | 6.50 | 7.96 | 10.28 | 12.16 | 14.53 | |||||||
| CA13.800 | · | · | 3.5 | 4.00 | 5.66 | 8.00 | 9.80 | 12.65 | 14.97 | 17.89 | |||||||
| CA23.100 | · | · | 3.9 | 5.00 | 7.07 | 10.00 | 12.25 | 15.81 | 18.71 | 22.36 | |||||||
| CA23.125 | · | · | 4.3 | 6.25 | 8.84 | 12.50 | 15.31 | 19.76 | 23.39 | 27.95 | |||||||
| CA23.160 | · | · | 4.9 | 8.00 | 11.31 | 16.00 | 19.60 | 25.30 | 29.93 | 35.78 | |||||||
| CA23.180 | · | · | 5.2 | 9.00 | 12.73 | 18.00 | 22.05 | 28.46 | 33.67 | 40.25 | |||||||
| CA23.200 | · | · | 5.5 | 10.00 | 14.14 | 20.00 | 24.49 | 31.62 | 37.42 | 44.72 | |||||||
| CA23.225 | · | · | 5.8 | 11.25 | 15.91 | 22.50 | 27.56 | 35.58 | 42.09 | 50.31 | |||||||
| CA23.250 | · | · | 6.1 | 12.50 | 17.68 | 25.00 | 30.62 | 39.53 | 46.77 | 55.90 | |||||||
| CA23.320 | · | · | 6.4 | 16.00 | 22.63 | 32.00 | 39.19 | 50.60 | 59.87 | 71.55 | |||||||
| CA23.400 | · | · | 7.8 | 20.00 | 28.28 | 40.00 | 48.99 | 63.25 | 74.83 | 89.44 | |||||||
| CA23.520 | · | 8.9 | 26.00 | 36.77 | 52.00 | 63.69 | 82.22 | 97.28 | 116.28 | ||||||||
| CA23.650 | · | 9.9 | 32.50 | 45.96 | 65.00 | 79.61 | 102.77 | 121.60 | 145.34 | ||||||||
| CA23.800 | · | 11.0 | 40.00 | 56.57 | 80.00 | 97.98 | 126.49 | 149.67 | 178.89 | ||||||||
| Угол распыления 60° | Соединение | Диаметр отверстий | Производительность в л/мин при разном давлении | Размер GA в миллиметрах | |||||||||||||
| 1/8” | 1/4” | 3/8” | 1/2” | ||||||||||||||
| Модель | BSP BSPT NPT |
BSP BSPT NPT |
BSP BSPT NPT |
BSP BSPT NPT |
Давление в барах | ||||||||||||
| 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 7.0 | 10.0 | CONN. | H | H1 | D | HEX | ||||||
| CA14.050 | · | · | 0.8 | 0.25 | 0.35 | 0.50 | 0.61 | 0.79 | 0.94 | 1.12 | 1/8” | 18 | 6.5 | 10.2 | 11 | ||
| CA14.075 | · | · | 1.0 | 0.37 | 0.53 | 0.75 | 0.92 | 1.19 | 1.40 | 1.68 | 1/8" Weight (Metals) = 7 gms. Approx | ||||||
| CA14.100 | · | · | 1.2 | 0.50 | 0.71 | 1.00 | 1.22 | 1.58 | 1.87 | 2.24 | 1/4” | 22 | 10 | 13 | 14 | ||
| CA14.150 | · | · | 1.5 | 0.75 | 1.06 | 1.50 | 1.84 | 2.37 | 2.81 | 3.35 | 1/4" Weight (Metals) = 18 gms. Approx | ||||||
| CA14.175 | · | · | 1.6 | 0.87 | 1.24 | 1.75 | 2.14 | 2.77 | 3.27 | 3.91 | 3/8” | 25 | 12 | 16 | 17 | ||
| CA14.200 | · | · | 1.7 | 1.00 | 1.41 | 2.00 | 2.45 | 3.16 | 3.74 | 4.47 | 3/8" Weight (Metals) = 28 gms. Approx | ||||||
| CA14.250 | · | · | 1.9 | 1.25 | 1.77 | 2.50 | 3.06 | 3.95 | 4.68 | 5.59 | 1/2” | 27 | 13.2 | 21 | 22 | ||
| CA14.300 | · | · | 2.1 | 1.5 | 2.12 | 3.00 | 3.67 | 4.74 | 5.61 | 6.71 | 1/2" Weight (Metals) = 42 gms. Approx | ||||||
| CA14.350 | · | · | 2.3 | 1.75 | 2.47 | 3.50 | 4.29 | 5.53 | 6.55 | 7.83 | |||||||
| CA14.400 | · | · | 2.4 | 2.00 | 2.83 | 4.00 | 4.90 | 6.32 | 7.48 | 8.94 | |||||||
| CA14.475 | · | · | 2.7 | 2.37 | 3.36 | 4.75 | 5.82 | 7.51 | 8.89 | 10.62 | |||||||
| CA14.650 | · | · | 3.1 | 3.25 | 4.60 | 6.50 | 7.96 | 10.28 | 12.16 | 14.53 | |||||||
| CA14.800 | · | · | 3.5 | 4.00 | 5.66 | 8.00 | 9.80 | 12.65 | 14.97 | 17.89 | |||||||
| CA24.100 | · | · | 3.9 | 5.00 | 7.07 | 10.00 | 12.25 | 15.81 | 18.71 | 22.36 | |||||||
| CA24.125 | · | · | 4.3 | 6.25 | 8.84 | 12.50 | 15.31 | 19.76 | 23.39 | 27.95 | |||||||
| CA24.160 | · | · | 4.9 | 8.00 | 11.31 | 16.00 | 19.60 | 25.30 | 29.93 | 35.78 | |||||||
| CA24.180 | · | · | 5.2 | 9.00 | 12.73 | 18.00 | 22.05 | 28.46 | 33.67 | 40.25 | |||||||
| CA24.200 | · | · | 5.5 | 10.00 | 14.14 | 20.00 | 24.49 | 31.62 | 37.42 | 44.72 | |||||||
| CA24.225 | · | · | 5.8 | 11.25 | 15.91 | 22.50 | 27.56 | 35.58 | 42.09 | 50.31 | |||||||
| CA24.250 | · | · | 6.1 | 12.50 | 17.68 | 25.00 | 30.62 | 39.53 | 46.77 | 55.90 | |||||||
| CA24.320 | · | · | 6.4 | 16.00 | 22.63 | 32.00 | 39.19 | 50.60 | 59.87 | 71.55 | |||||||
| CA24.400 | · | · | 7.8 | 20.00 | 28.28 | 40.00 | 48.99 | 63.25 | 74.83 | 89.44 | |||||||
| CA24.520 | · | 8.9 | 26.00 | 36.77 | 52.00 | 63.69 | 82.22 | 97.28 | 116.28 | ||||||||
| CA24.650 | · | 9.9 | 32.50 | 45.96 | 65.00 | 79.61 | 102.77 | 121.60 | 145.34 | ||||||||
| CA24.800 | · | 11.0 | 40.00 | 56.57 | 80.00 | 97.98 | 126.49 | 149.67 | 178.89 | ||||||||
| Угол распыления 90° | Соединение | Диаметр отверстий | Производительность в л/мин при разном давлении | Размер GA в миллиметрах | |||||||||||||
| 1/8” | 1/4” | 3/8” | 1/2” | ||||||||||||||
| Модель | BSP BSPT NPT |
BSP BSPT NPT |
BSP BSPT NPT |
BSP BSPT NPT |
Давление в барах | ||||||||||||
| 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 7.0 | 10.0 | CONN. | H | H1 | D | HEX | ||||||
| CA16.050 | · | · | 0.8 | 0.25 | 0.35 | 0.50 | 0.61 | 0.79 | 0.94 | 1.12 | 1/8” | 18 | 6.5 | 10.2 | 11 | ||
| CA16.075 | · | · | 1.0 | 0.37 | 0.53 | 0.75 | 0.92 | 1.19 | 1.40 | 1.68 | 1/8" Weight (Metals) = 7 gms. Approx | ||||||
| CA16.100 | · | · | 1.2 | 0.50 | 0.71 | 1.00 | 1.22 | 1.58 | 1.87 | 2.24 | 1/4” | 22 | 10 | 13 | 14 | ||
| CA16.150 | · | · | 1.5 | 0.75 | 1.06 | 1.50 | 1.84 | 2.37 | 2.81 | 3.35 | 1/4" Weight (Metals) = 18 gms. Approx | ||||||
| CA16.175 | · | · | 1.6 | 0.87 | 1.24 | 1.75 | 2.14 | 2.77 | 3.27 | 3.91 | 3/8” | 25 | 12 | 16 | 17 | ||
| CA16.200 | · | · | 1.7 | 1.00 | 1.41 | 2.00 | 2.45 | 3.16 | 3.74 | 4.47 | 3/8" Weight (Metals) = 28 gms. Approx | ||||||
| CA16.250 | · | · | 1.9 | 1.25 | 1.77 | 2.50 | 3.06 | 3.95 | 4.68 | 5.59 | 1/2” | 27 | 13.2 | 21 | 22 | ||
| CA16.300 | · | · | 2.1 | 1.5 | 2.12 | 3.00 | 3.67 | 4.74 | 5.61 | 6.71 | 1/2" Weight (Metals) = 42 gms. Approx | ||||||
| CA16.350 | · | · | 2.3 | 1.75 | 2.47 | 3.50 | 4.29 | 5.53 | 6.55 | 7.83 | |||||||
| CA16.400 | · | · | 2.4 | 2.00 | 2.83 | 4.00 | 4.90 | 6.32 | 7.48 | 8.94 | |||||||
| CA16.475 | · | · | 2.7 | 2.37 | 3.36 | 4.75 | 5.82 | 7.51 | 8.89 | 10.62 | |||||||
| CA16.650 | · | · | 3.1 | 3.25 | 4.60 | 6.50 | 7.96 | 10.28 | 12.16 | 14.53 | |||||||
| CA16.800 | · | · | 3.5 | 4.00 | 5.66 | 8.00 | 9.80 | 12.65 | 14.97 | 17.89 | |||||||
| CA26.100 | · | · | 3.9 | 5.00 | 7.07 | 10.00 | 12.25 | 15.81 | 18.71 | 22.36 | |||||||
| CA26.125 | · | · | 4.3 | 6.25 | 8.84 | 12.50 | 15.31 | 19.76 | 23.39 | 27.95 | |||||||
| CA26.160 | · | · | 4.9 | 8.00 | 11.31 | 16.00 | 19.60 | 25.30 | 29.93 | 35.78 | |||||||
| CA26.180 | · | · | 5.2 | 9.00 | 12.73 | 18.00 | 22.05 | 28.46 | 33.67 | 40.25 | |||||||
| CA26.200 | · | · | 5.5 | 10.00 | 14.14 | 20.00 | 24.49 | 31.62 | 37.42 | 44.72 | |||||||
| CA26.225 | · | · | 5.8 | 11.25 | 15.91 | 22.50 | 27.56 | 35.58 | 42.09 | 50.31 | |||||||
| CA26.250 | · | · | 6.1 | 12.50 | 17.68 | 25.00 | 30.62 | 39.53 | 46.77 | 55.90 | |||||||
| CA26.320 | · | · | 6.4 | 16.00 | 22.63 | 32.00 | 39.19 | 50.60 | 59.87 | 71.55 | |||||||
| CA26.400 | · | · | 7.8 | 20.00 | 28.28 | 40.00 | 48.99 | 63.25 | 74.83 | 89.44 | |||||||
| CA26.520 | · | 8.9 | 26.00 | 36.77 | 52.00 | 63.69 | 82.22 | 97.28 | 116.28 | ||||||||
| CA26.650 | · | 9.9 | 32.50 | 45.96 | 65.00 | 79.61 | 102.77 | 121.60 | 145.34 | ||||||||
| CA26.800 | · | 11.0 | 40.00 | 56.57 | 80.00 | 97.98 | 126.49 | 149.67 | 178.89 | ||||||||
| Угол распыления 120° | Соединение | Диаметр отверстий | Производительность в л/мин при разном давлении | Размер GA в миллиметрах | |||||||||||||
| 1/8” | 1/4” | 3/8” | 1/2” | ||||||||||||||
| Модель | BSP BSPT NPT |
BSP BSPT NPT |
BSP BSPT NPT |
BSP BSPT NPT |
Давление в барах | ||||||||||||
| 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 7.0 | 10.0 | CONN. | H | H1 | D | HEX | ||||||
| CA18.050 | · | · | 0.8 | 0.25 | 0.35 | 0.50 | 0.61 | 0.79 | 0.94 | 1.12 | 1/8” | 18 | 6.5 | 10.2 | 11 | ||
| CA18.075 | · | · | 1.0 | 0.37 | 0.53 | 0.75 | 0.92 | 1.19 | 1.40 | 1.68 | 1/8" Weight (Metals) = 7 gms. Approx | ||||||
| CA18.100 | · | · | 1.2 | 0.50 | 0.71 | 1.00 | 1.22 | 1.58 | 1.87 | 2.24 | 1/4” | 22 | 10 | 13 | 14 | ||
| CA18.150 | · | · | 1.5 | 0.75 | 1.06 | 1.50 | 1.84 | 2.37 | 2.81 | 3.35 | 1/4" Weight (Metals) = 18 gms. Approx | ||||||
| CA18.175 | · | · | 1.6 | 0.87 | 1.24 | 1.75 | 2.14 | 2.77 | 3.27 | 3.91 | 3/8” | 25 | 12 | 16 | 17 | ||
| CA18.200 | · | · | 1.7 | 1.00 | 1.41 | 2.00 | 2.45 | 3.16 | 3.74 | 4.47 | 3/8" Weight (Metals) = 28 gms. Approx | ||||||
| CA18.250 | · | · | 1.9 | 1.25 | 1.77 | 2.50 | 3.06 | 3.95 | 4.68 | 5.59 | 1/2” | 27 | 13.2 | 21 | 22 | ||
| CA18.300 | · | · | 2.1 | 1.5 | 2.12 | 3.00 | 3.67 | 4.74 | 5.61 | 6.71 | 1/2" Weight (Metals) = 42 gms. Approx | ||||||
| CA18.350 | · | · | 2.3 | 1.75 | 2.47 | 3.50 | 4.29 | 5.53 | 6.55 | 7.83 | |||||||
| CA18.400 | · | · | 2.4 | 2.00 | 2.83 | 4.00 | 4.90 | 6.32 | 7.48 | 8.94 | |||||||
| CA18.475 | · | · | 2.7 | 2.37 | 3.36 | 4.75 | 5.82 | 7.51 | 8.89 | 10.62 | |||||||
| CA18.650 | · | · | 3.1 | 3.25 | 4.60 | 6.50 | 7.96 | 10.28 | 12.16 | 14.53 | |||||||
| CA18.800 | · | · | 3.5 | 4.00 | 5.66 | 8.00 | 9.80 | 12.65 | 14.97 | 17.89 | |||||||
| CA28.100 | · | · | 3.9 | 5.00 | 7.07 | 10.00 | 12.25 | 15.81 | 18.71 | 22.36 | |||||||
| CA28.125 | · | · | 4.3 | 6.25 | 8.84 | 12.50 | 15.31 | 19.76 | 23.39 | 27.95 | |||||||
| CA28.160 | · | · | 4.9 | 8.00 | 11.31 | 16.00 | 19.60 | 25.30 | 29.93 | 35.78 | |||||||
| CA28.180 | · | · | 5.2 | 9.00 | 12.73 | 18.00 | 22.05 | 28.46 | 33.67 | 40.25 | |||||||
| CA28.200 | · | · | 5.5 | 10.00 | 14.14 | 20.00 | 24.49 | 31.62 | 37.42 | 44.72 | |||||||
| CA28.225 | · | · | 5.8 | 11.25 | 15.91 | 22.50 | 27.56 | 35.58 | 42.09 | 50.31 | |||||||
| CA28.250 | · | · | · | 6.1 | 12.50 | 17.68 | 25.00 | 30.62 | 39.53 | 46.77 | 55.90 | ||||||
| CA28.320 | · | · | 6.4 | 16.00 | 22.63 | 32.00 | 39.19 | 50.60 | 59.87 | 71.55 | |||||||
| CA28.400 | · | · | 7.8 | 20.00 | 28.28 | 40.00 | 48.99 | 63.25 | 74.83 | 89.44 | |||||||
